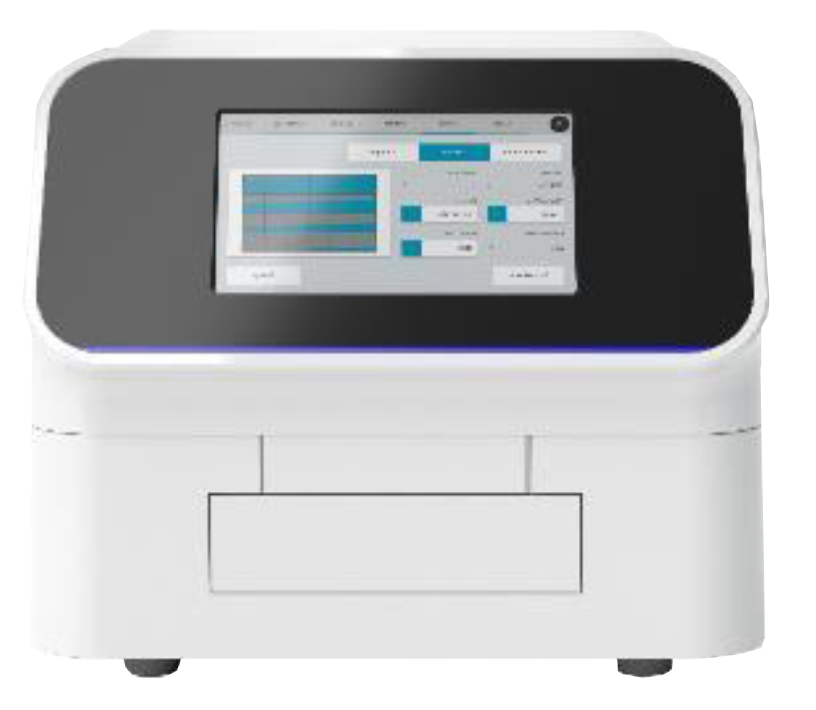

This lightweight liquid handler uses a single positive pressure channel to generate droplets as small as 8 nanoliters through an orifice in the well and can produce up to 100 droplets per second.

Key Benefits

1. Accuracy:Built-in droplet veri˜ication

I.DOT MINI‘s droplet detection has the capabil-ity to detect when users run out of source liquid and can verify total dispense value.

2. Eliminate carryover and cross contamination

The technology enables droplets to be dispensed into the target plate below the source plate. I.DOT MINI eliminates carryover and cross-contamination.

3.Speed

Dispense 10 nanoliters across a 96-well plate in 10 seconds and across a 384-well plate in 20 seconds for 50nl.

4.Flexible

Rapidly dispense into any SBS target plate, including 96-, 384- and 1536-well plates of a maximum height of 16 mm.

5.Low dead volume

Well reservoir design ensures dead volume < 1 μl for H20.

6.Large dynamic range

Dispenses 8 nl to 500,000 nl if a single source liquid at a time.

IMPROVED EFFICIENCY ACROSS APPLICATIONS

1.Compound dispensing

Dispenses small molecules in aqueous solutions or dimethyl sulfoxide (DMSO).

2.Assay development

Dispenses small molecules, nucleic acids, drugs, etc. in a multiplexed manner and in direct dilution steps. Ideal for designing individual experiments.

3.Genomics and proteomics

Leverages miniaturization, low-volume dispensing and low dead volume to efficiently dispense for NGS prep, PCR, extraction and clean-ups.

4.Cell dispensing

Reproducibly dispense anything from cells in suspension to organoids, while maintaining high cell viability.
